Microsoft Entra Sign-In Logs Explained: A Field Guide for Administrators and SOC Teams

When an administrator opens a Microsoft Entra sign-in log, the first question is usually:

“Success or failure?”

That is useful, but it is only the outcome.

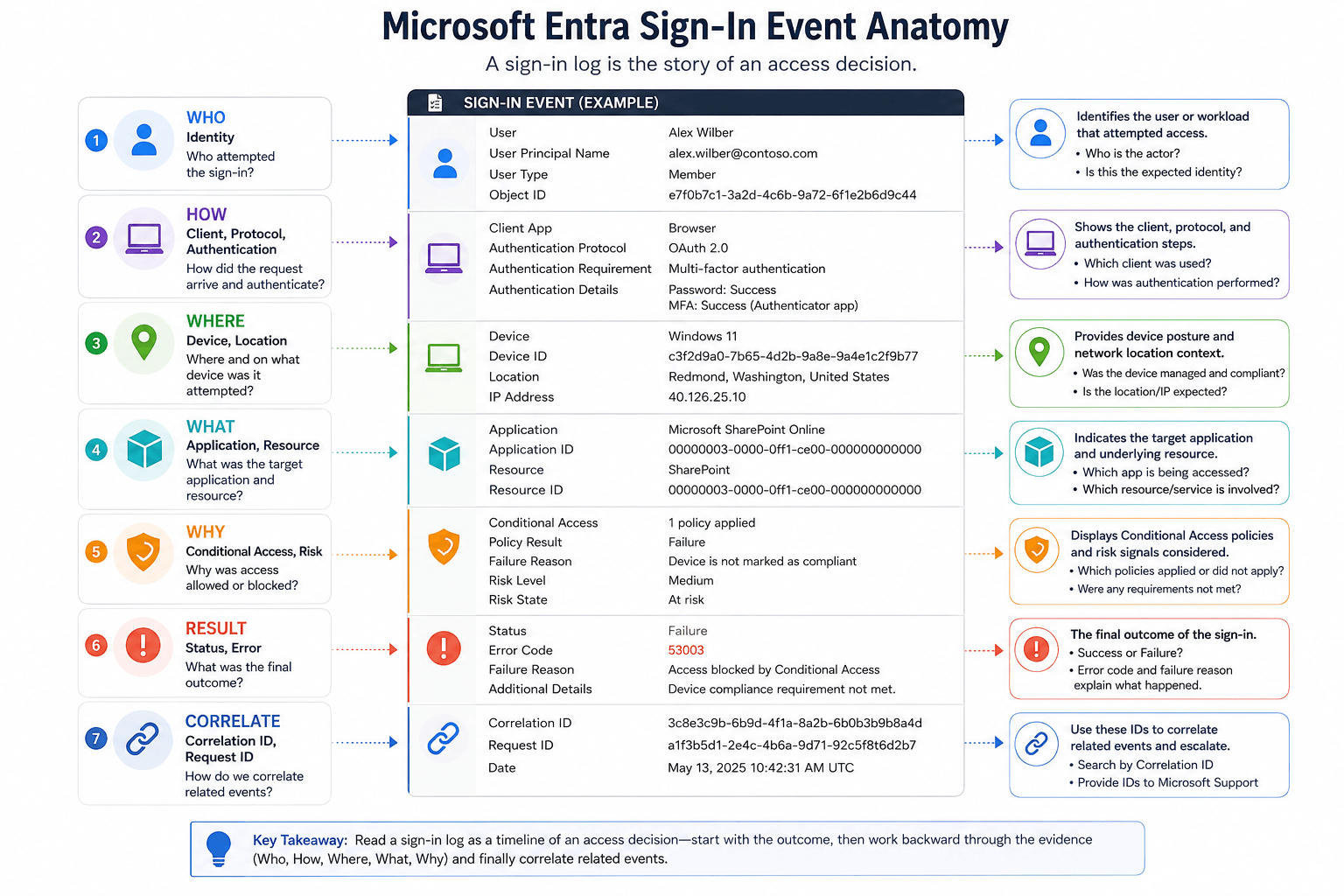

A sign-in event is better understood as the record of an access decision:

flowchart TD

    A["WHO — Identity"]
    B["HOW — Client + Protocol + Authentication"]
    C["WHERE — Device + Location"]
    D["WHAT — Application + Resource"]
    E["WHY — Conditional Access + Risk"]
    F["RESULT — Status + Error"]
    G["CORRELATE — Correlation ID + Request ID"]

    A --> B
    B --> C
    C --> D
    D --> E
    E --> F
    F --> G

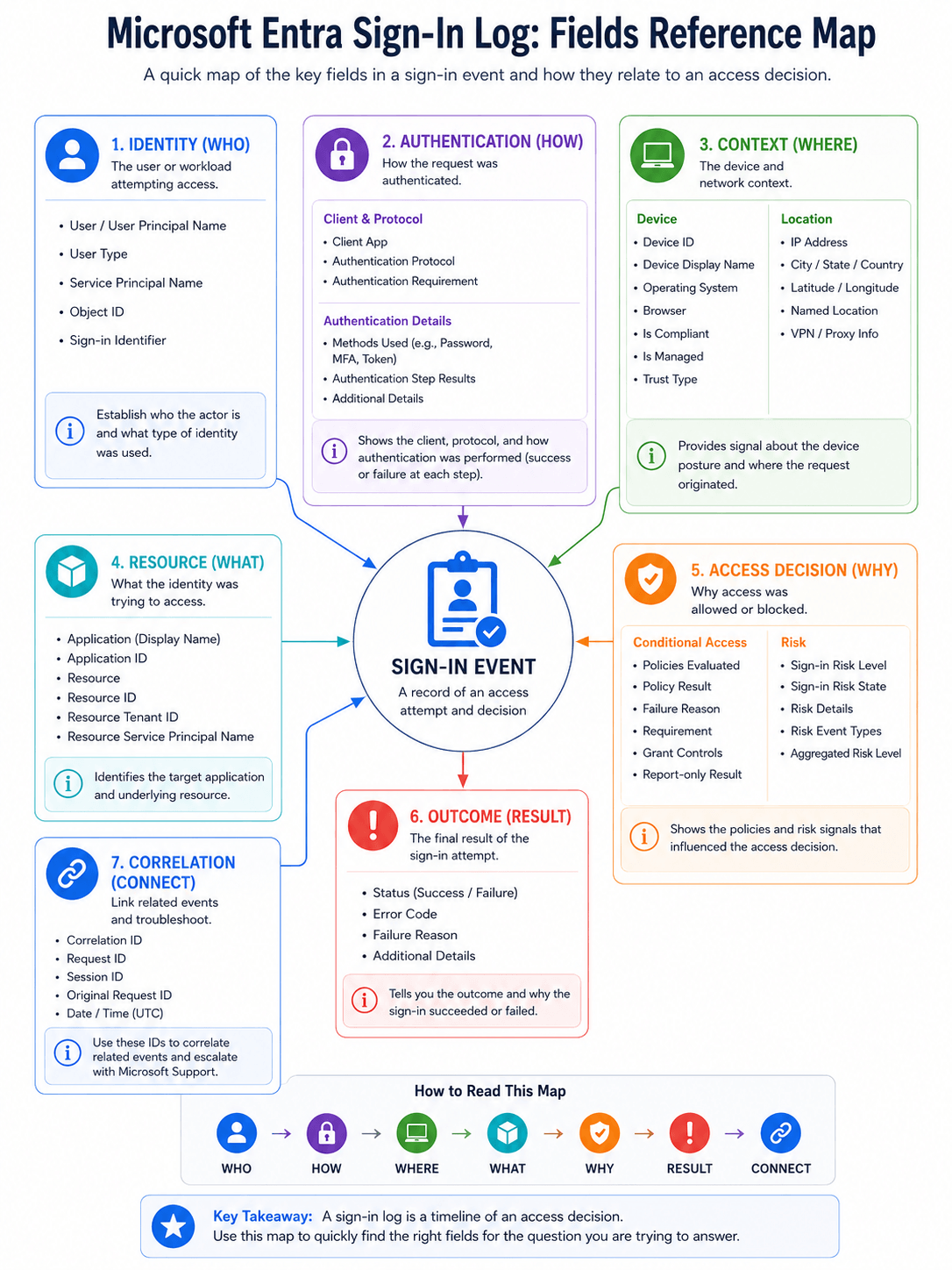

The goal of this guide is not to explain every field Microsoft can expose.

It is to explain the fields that are most useful when you need to understand what actually happened.

View larger

Image detail

−100%+Reset✕

1. Start With the Sign-In Event

Microsoft Entra sign-in logs contain more than interactive user sign-ins. Depending on the scenario, you may encounter interactive user sign-ins, non-interactive user sign-ins, service principal sign-ins, and managed identity sign-ins.

That distinction matters because different sign-in types represent different authentication scenarios.

For a user issue, begin by finding the exact event using information such as:

• user;
• application;
• date and time;
• status;
• resource;
• correlation information.

Then work through the event in this order:

flowchart TD

    A["Basic Info"]
    B["Status / Error"]
    C["Client / Protocol"]
    D["Device / Location"]
    E["Resource"]
    F["Conditional Access"]
    G["Risk"]
    H["Authentication details"]
    I["Correlation / Request IDs"]

    A --> B
    B --> C
    C --> D
    D --> E
    E --> F
    F --> G
    G --> H
    H --> I

You do not need to inspect every field on every investigation.

Start with the fields that answer the question you are trying to solve.

Retention matters

Sign-in data is not retained indefinitely in the default experience. Retention varies by Microsoft Entra licensing and by the type of sign-in or risk data being retained.

For longer investigations, plan to route relevant logs to appropriate storage or analytics tooling.

A log that has already expired cannot help an investigation you have not started yet.

2. WHO — Identify the Sign-In Actor

Every investigation starts with the identity.

Establish:

• who attempted the sign-in;
• whether the event belongs to a user, service principal, or managed identity;
• whether the activity matches the expected account.

For a security investigation, compare the identity with the rest of the event:

Expected identity + Expected resource + Expected device + Expected location

versus:

Expected identity + Unexpected client + Unfamiliar location + Elevated risk

The identity becomes useful when it is read together with the rest of the event.

3. STATUS — What Was the Outcome?

Status is where most investigations begin.

Use it to locate failed events, then move into the details:

flowchart TD

    A["Status"]
    B["Error code"]
    C["Failure reason"]
    D["Additional details"]

    A --> B
    B --> C
    C --> D

A failure can represent many different conditions, including:

• Conditional Access;
• incomplete MFA;
• invalid credentials;
• device problems;
• expired sessions;
• application issues;
• user error.

So:

Treat Status as the door into the investigation, not the conclusion.

4. ERROR CODE — Narrow the Investigation

Error codes provide a stronger clue about what happened.

For example:

flowchart TD

    A["AADSTS53003"]
    B["Conditional Access"]
    C["Inspect applied policies"]

    A --> B
    B --> C

Or:

flowchart TD

    A["AADSTS50126"]
    B["Credential issue"]
    C["Investigate authentication"]

    A --> B
    B --> C

But do not diagnose the incident from the error code alone.

Use the code together with the rest of the event.

5. CLIENT APP — How Did the Request Arrive?

Client app identifies the client category used for the sign-in.

This matters for troubleshooting and security investigations because modern clients and legacy authentication clients can represent very different risk profiles.

Legacy protocols can include:

• Exchange ActiveSync;
• IMAP;
• MAPI;
• SMTP;
• POP;
• other legacy authentication paths.

For security operations, Client app can therefore act as a useful hunting signal.

For example:

Successful sign-in + Legacy client + Unexpected account

deserves attention.

Before blocking legacy authentication broadly, establish what currently exists in the environment.

6. AUTHENTICATION PROTOCOL — Which Authentication Path Was Used?

Client app tells you what kind of client initiated the request.

Authentication protocol tells you more about how the authentication flow was performed.

Examples include:

• OAuth 2.0;
• ROPC;
• WS-Federation;
• SAML;
• device code;
• client credentials;
• refresh token grant;
• Kerberos;
• PRT grant;
• seamless SSO;
• on-behalf-of flows.

This distinction can help separate a normal modern sign-in from an unexpected or legacy authentication path.

Some richer protocol information is exposed through the Microsoft Graph signIn resource, and specific fields may be documented in the beta surface.

7. AUTHENTICATION REQUIREMENT — What Level Was Expected?

This field describes the authentication requirement associated with the sign-in.

Common values include:

• singleFactorAuthentication;
• multiFactorAuthentication.

Do not interpret this field in isolation.

A previously satisfied claim or another authentication signal can affect how the requirement is represented.

Use:

Authentication requirement + Authentication details + Conditional Access

to understand the actual authentication path.

8. AUTHENTICATION DETAILS — What Happened During Authentication?

The Authentication details view is one of the most useful parts of the sign-in record.

It can show the sequence of authentication methods and whether each step succeeded.

Examples include:

• Password;
• SMS;
• Voice;
• Authenticator app;
• Software OATH token;
• satisfied by token;
• previously satisfied.

It can also show why a step failed, such as:

• user declined;
• incorrect code;
• phone unreachable;
• registration prompted;
• authentication requirement already satisfied.

For example:

Password → Success

MFA → User declined → Sign-in fails

compared with:

Password → Success

MFA → Satisfied by token → Conditional Access → Access granted

The important question is not simply:

“Was MFA required?”

It is:

“What authentication method was actually used, and what happened at each step?”

Authentication details can also appear incomplete briefly while event aggregation finishes.

9. DEVICE INFORMATION — What Device Was Evaluated?

Device information can include:

• browser;
• operating system;
• device ID;
• display name;
• compliance state;
• managed state;
• trust type.

For Conditional Access, a device requirement can often be traced directly through this information:

Policy: Require compliant device → Device information → Non-compliant

For security operations, the same fields can highlight unfamiliar devices, unmanaged access, unexpected operating systems, or changes in normal access patterns.

A blank device field does not automatically prove that no device exists. Available device information depends on the sign-in scenario.

10. LOCATION — Where Did the Request Come From?

Location information can include:

• IP address;
• city;
• state;
• country or region;
• geographic information.

VPNs and proxies can affect the network identity Microsoft Entra evaluates.

That makes Location useful, but not absolute.

IP geolocation is a signal, not proof of physical location.

For administrators, use it alongside named network conditions and Conditional Access.

For security investigations, compare it with the user’s normal access pattern and other risk signals.

11. RESOURCE — What Was the Identity Trying to Access?

The visible application is not always the whole story.

Sign-in data can expose information about:

• Application;
• Application ID;
• Resource;
• Resource ID;
• Resource tenant;
• Resource service principal.

That distinction is useful when an application appears to work normally but one related service or resource fails.

A simple model is:

Application → Authentication → Resource → Conditional Access / access decision

So:

Do not assume the client app and the resource are the same thing.

12. CONDITIONAL ACCESS — Which Policies Influenced the Decision?

The Conditional Access section connects the sign-in event to the access-control model.

Look for:

• which policies applied;
• which policies did not apply;
• which conditions were satisfied;
• which requirements failed;
• whether the result came from enforcement or Report-only evaluation.

The investigation becomes:

Sign-in event → Conditional Access → Applicable policies → Policy result → Unmet requirement

A policy showing Success does not necessarily mean the overall sign-in succeeded. Another applicable policy can still introduce a requirement or block access.

Report-only results are useful for comparing current behavior with potential future policy behavior.

13. RISK — Is the Sign-In Suspicious?

Risk adds the security perspective.

The source material identifies:

• sign-in risk;
• aggregated risk;
• risk state;
• risk detail;
• risk event types.

Risk levels can include:

• none;
• low;
• medium;
• high;
• hidden.

Risk states can include:

• none;
• confirmed safe;
• remediated;
• dismissed;
• at risk;
• confirmed compromised.

Useful signals include:

• password spray;
• anonymous IP;
• unfamiliar sign-in properties;
• anomalous token;
• impossible or atypical travel.

For SOC teams, risk can help prioritize investigations.

For administrators, it can explain why a risk-based Conditional Access policy introduced an additional requirement.

Richer risk information can depend on Microsoft Entra ID Protection licensing.

14. CORRELATION ID and REQUEST ID — Connect the Investigation

These identifiers answer different questions.

Correlation ID

Use the Correlation ID to connect related activity associated with the broader sign-in session.

It can be especially useful when a user provides an identifier from an error page and support needs to locate the corresponding event.

Microsoft notes that the Correlation ID is based on parameters passed by the client, so its accuracy cannot be guaranteed by Entra ID.

Request ID

Use the Request ID when you need to correlate a more specific request or token context.

A practical model is:

Correlation ID → Broader sign-in session

Request ID → Specific request / token context

When escalating a difficult authentication issue, retain both when available.

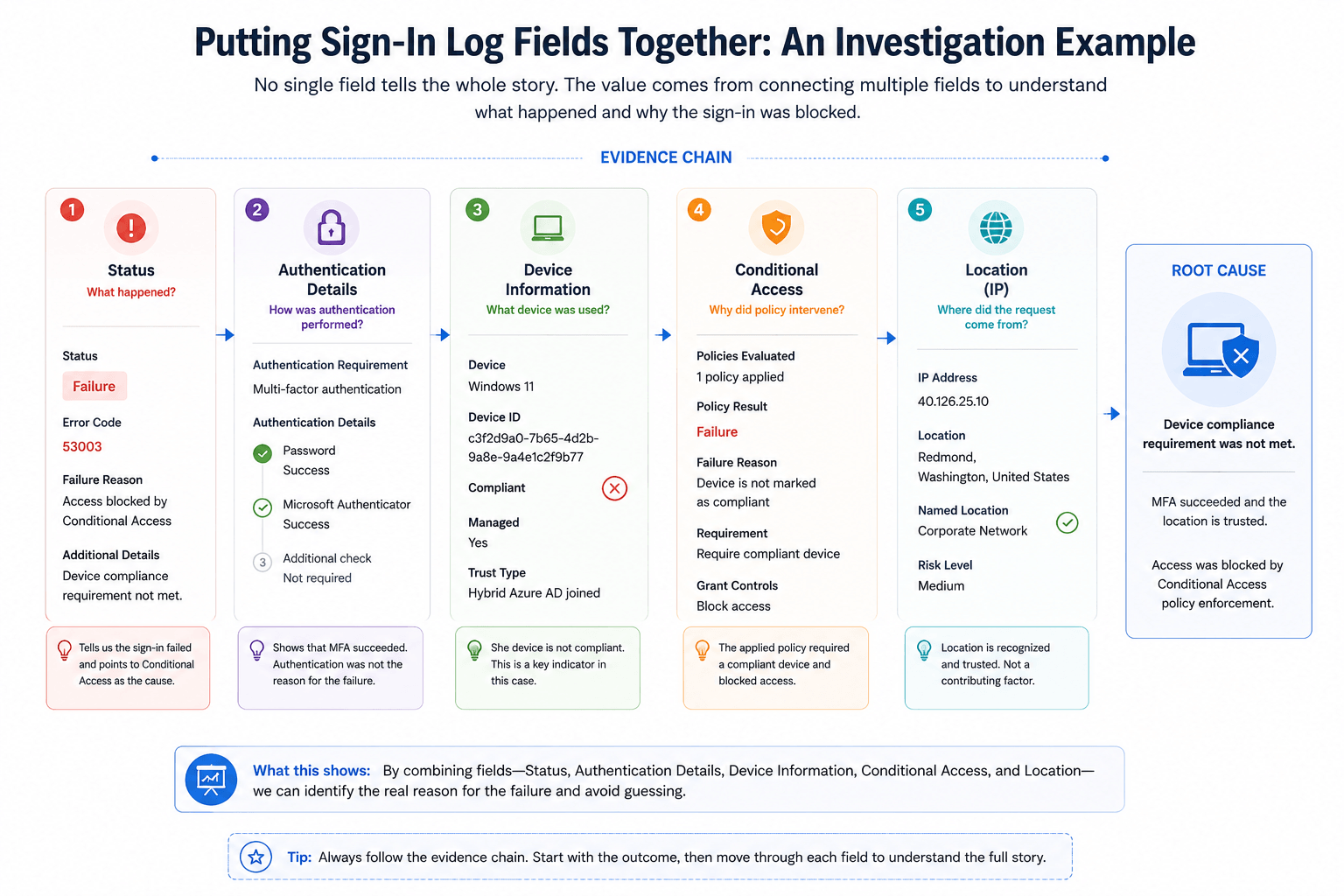

15. Read the Fields Together

The real value of sign-in logs comes from the relationships between fields.

Consider:

flowchart TD

    A["Sign-in result"] --> A1["Failure"]

    B["Error code"] --> B1["53003"]
    C["Conditional Access"] --> C1["Policy blocked"]
    D["Device"] --> D1["Non-compliant"]
    E["Authentication"] --> E1["MFA succeeded"]
    F["Resource"] --> F1["SharePoint"]

    A1 --> G["Why did the sign-in fail?"]

    B1 --> G
    C1 --> G
    D1 --> G
    E1 --> G
    F1 --> G

Now the event tells a story:

MFA was not the problem. The device requirement was.

That is much more useful than simply reporting:

“Conditional Access blocked the user.”

The strongest investigations correlate:

Status + Error code + Authentication details + Conditional Access + Device / Location + Resource + Correlation / Request IDs

The goal is to reconstruct the access decision from the available evidence.

View larger

Image detail

−100%+Reset✕

16. What Administrators and SOC Teams Should Hunt For

Sign-in logs are useful for proactive investigation as well as incident response.

Legacy authentication

Look for unexpected or successful sign-ins using legacy protocols.

Repeated failures

Look for patterns across:

• accounts;
• IP addresses;
• applications;
• client types.

MFA failures

Look for:

• repeated prompts;
• user-declined requests;
• failed authentication methods;
• unusual authentication sequences.

Conditional Access anomalies

Look for:

• unexpected policy failures;
• policies suddenly affecting existing users;
• unexpected Report-only results;
• behavior changes after policy updates.

Device anomalies

Look for:

• unmanaged devices;
• new device IDs;
• unexpected operating systems;
• unusual browser combinations.

Risk signals

Look for:

• high-risk sign-ins;
• unfamiliar sign-in properties;
• anonymous IPs;
• impossible or atypical travel;
• password-spray indicators.

The objective is not to collect more logs.

It is to identify patterns that deserve investigation.

17. The Sign-In Investigation Checklist

When investigating an event, work through:

• Who attempted the sign-in?
• What were they trying to access?
• Which client was used?
• Which authentication protocol was used?
• What was the Status and Error code?
• What happened in Authentication details?
• What device was evaluated?
• What location / IP was evaluated?
• Which Conditional Access policies applied?
• Did any policy introduce an unmet requirement?
• Was the sign-in considered risky?
• What Correlation ID and Request ID are available?
• What related events should be correlated?

This is enough to turn the sign-in event into a structured investigation without requiring administrators to memorize the entire schema.

18. The Fields at a Glance

View larger

Image detail

−100%+Reset✕

Conclusion — Read the Log as a Story

A Microsoft Entra sign-in log is not simply:

Success
or
Failure

It is a record of an access decision.

Read it in context:

WHO → HOW → WHERE → WHAT → WHY → RESULT → CORRELATE

Status tells you the outcome.

Authentication details tell you what happened during authentication.

Client and protocol tell you how the request arrived.

Device and Location describe the surrounding context.

Resource tells you what was being accessed.

Conditional Access explains how policy influenced the decision.

Risk adds the security perspective.

Correlation ID and Request ID help connect the event to the rest of the investigation.

So the most useful question is not:

“Did the sign-in succeed?”

It is:

“What story does this sign-in event tell me?”

Once administrators learn to read that story, sign-in logs stop being a wall of fields and become one of the most useful investigation tools in Microsoft Entra.
