Power Apps, Dataverse, and Power Automate are often learned as separate products.

That is useful at first.

For a production workload, the more useful question is how their responsibilities fit together:

Power Apps → experience

Dataverse → business data

Power Automate → orchestration

Around them sit connectors, APIs, analytics, security, environments, ALM, monitoring, and governance.

The platform becomes valuable when those responsibilities are designed together rather than implemented as isolated products.

View larger

Image detail

−100%+Reset✕

1. Start With the Workload

Do not begin by asking which product to deploy.

Start with:

• Who are the users?
• What are they trying to accomplish?
• What business data is involved?
• What processes happen after data changes?
• Which systems must participate?
• What needs automation?
• Which decisions require people?
• How critical is the workload?
• How will it be deployed and operated?

The application model should follow those requirements.

flowchart TD

    A["Business Workload"]
    B["Experience"]
    C["Data"]
    D["Process"]
    E["Integration"]
    F["Governance"]

    A --> B
    A --> C
    A --> D
    A --> E
    A --> F

2. Give Each Component a Clear Responsibility

Power Apps — Experience

Use Power Apps to give users the interface they need.

Canvas Apps suit highly customized task and mobile experiences.

Model-Driven Apps suit data-heavy, process-driven Dataverse applications.

Power Pages suits secure external-facing experiences.

Dataverse — Business Data

Dataverse provides governed operational business data together with relationships, metadata, security, business logic, APIs, auditing, integration, and lifecycle capabilities.

Power Automate — Orchestration

Power Automate connects events to the work that should happen next:

• approvals;
• notifications;
• record updates;
• cross-system processing;
• scheduled or event-driven automation.

The simplest mental model is:

Power Apps for experience.

Dataverse for business data.

Power Automate for orchestration.

3. The Core Pattern: Experience → Data → Automation

Consider an onboarding application:

sequenceDiagram

    participant U as User
    participant A as Power Apps
    participant D as Dataverse
    participant F as Power Automate
    participant S as Microsoft 365 / Other Systems

    U->>A: Submit request
    A->>D: Create record
    D->>F: Trigger workflow
    F->>S: Create tasks / notify
    F->>D: Update status
    D-->>A: Updated status
    A-->>U: Show progress

No single component needs to own the entire solution.

The application does not need to become the workflow engine.

The workflow does not need to become the user interface.

The data platform does not need to become the presentation layer.

4. Dataverse as the Shared Business Context

Dataverse can act as the common business-data layer for applications, automations, agents, reports, and custom integrations.

flowchart TD

    A["Power Apps"]
    B["Dataverse"]
    C["Power Automate"]
    D["Other Workloads"]

    A <--> B
    B <--> C
    B <--> D

This means data ownership, relationships, security, and lifecycle can be designed at the platform boundary instead of recreated independently in every application.

5. Connectors and APIs Form the Integration Layer

Connectors allow the platform to communicate with:

• Microsoft 365;
• Dataverse;
• Dynamics 365;
• Azure;
• SharePoint;
• SQL Server;
• third-party services.

They therefore influence architecture, permissions, data movement, reliability, governance, and sometimes licensing.

Custom connectors and APIs extend the integration model when a certified connector is not enough.

For more specialized requirements, use APIs or Azure services rather than pushing complex compute into Power Apps or Power Automate.

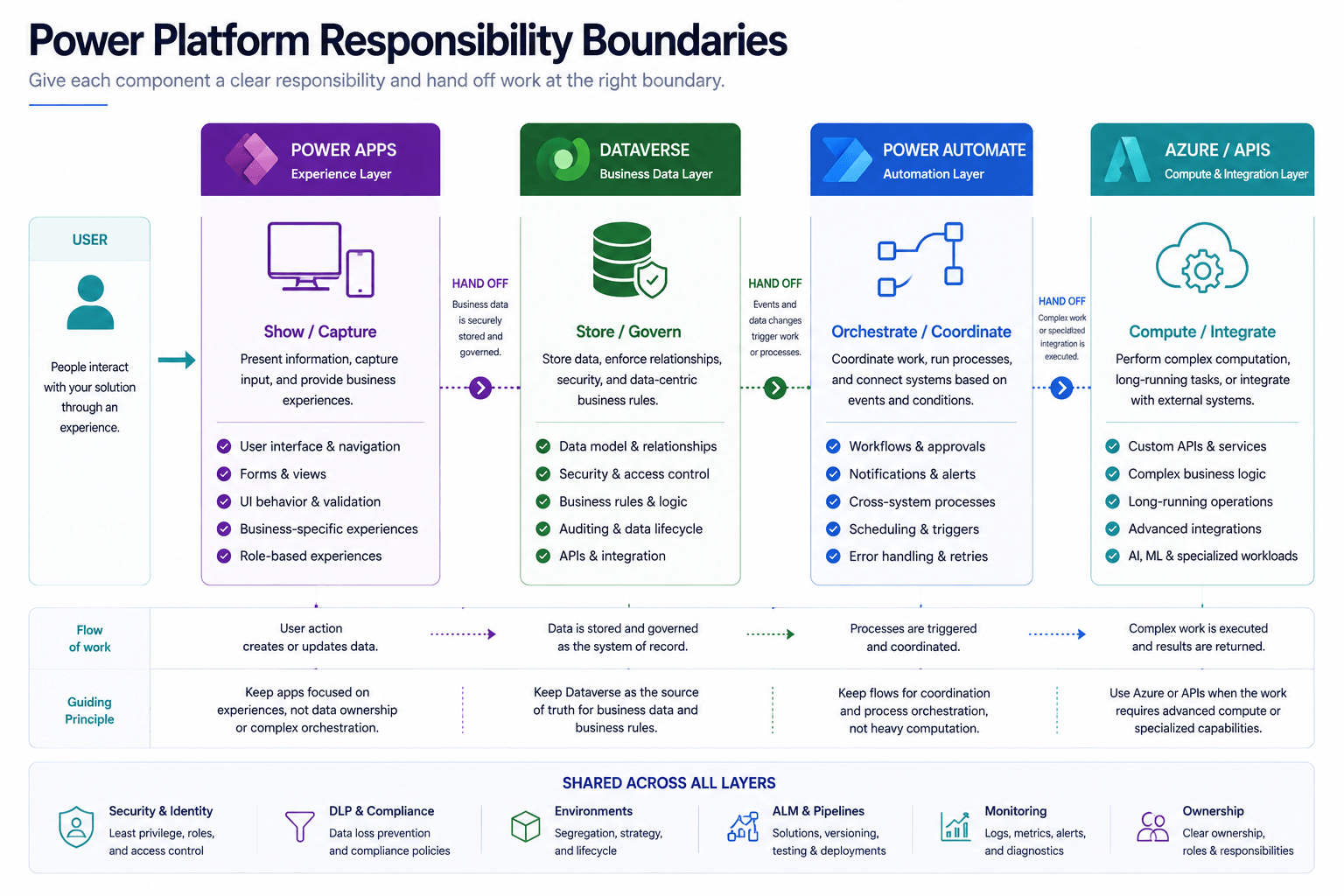

6. Put Logic Where It Belongs

The point is not to enforce rigid boundaries in every solution.

It is to prevent one component from becoming responsible for everything.

View larger

Image detail

−100%+Reset✕

7. Security Is a Workload-Level Concern

Security crosses every boundary:

flowchart TD

    A["User Identity"]
    B["Power Apps"]
    C["Dataverse"]
    D["Power Automate"]
    E["Connectors"]
    F["External Systems"]

    A --> B
    B --> C
    C --> D
    D --> E
    E --> F

Review:

• identity;
• least privilege;
• Dataverse permissions;
• connection ownership;
• service identities;
• environment boundaries;
• DLP;
• external-system permissions.

A secure Power App can still participate in an insecure solution if a flow or connector has excessive access.

Security belongs to the workload architecture, not to a single product.

8. Environments, ALM, and Governance Are the Control Plane

The platform components need common operational boundaries.

flowchart LR

    A["Development"]
    B["Test / UAT"]
    C["Production"]

    A -->|Controlled deployment| B
    B -->|Approved deployment| C

Solutions package related components, while pipelines support controlled movement between environments.

A mature model uses:

unmanaged development → managed test/UAT → managed production

along with source control, automated validation, approvals, environment variables, connection references, monitoring, and rollback/runbooks.

Governance then spans:

• environments;
• DLP;
• connectors;
• ownership;
• security;
• ALM;
• monitoring;
• capacity;
• licensing.

9. Keep Operational and Analytical Workloads Separate

A Power Platform application is not automatically an analytics platform.

A useful separation is:

Power Apps → interact with the business process.

Dataverse → manage operational business data.

Power Automate → orchestrate processes.

Power BI / Fabric → analyze and unify data.

Azure / APIs → provide specialized compute and integration.

This prevents transactional applications and workflows from becoming general-purpose analytics or compute engines.

10. Common Architectural Mistakes

The recurring mistakes are mostly boundary problems:

Power Apps as the entire system
The app accumulates data, orchestration, integration, and business logic.

Power Automate as the application layer
Flows become oversized, user-facing processes.

Dataverse treated as only a database
Security, APIs, lifecycle, and governance are ignored.

Everything built in the default environment
Development and production boundaries become difficult to manage.

Uncontrolled connector growth
Integrations proliferate without ownership or DLP controls.

RPA where an API exists
UI automation introduces unnecessary operational fragility.

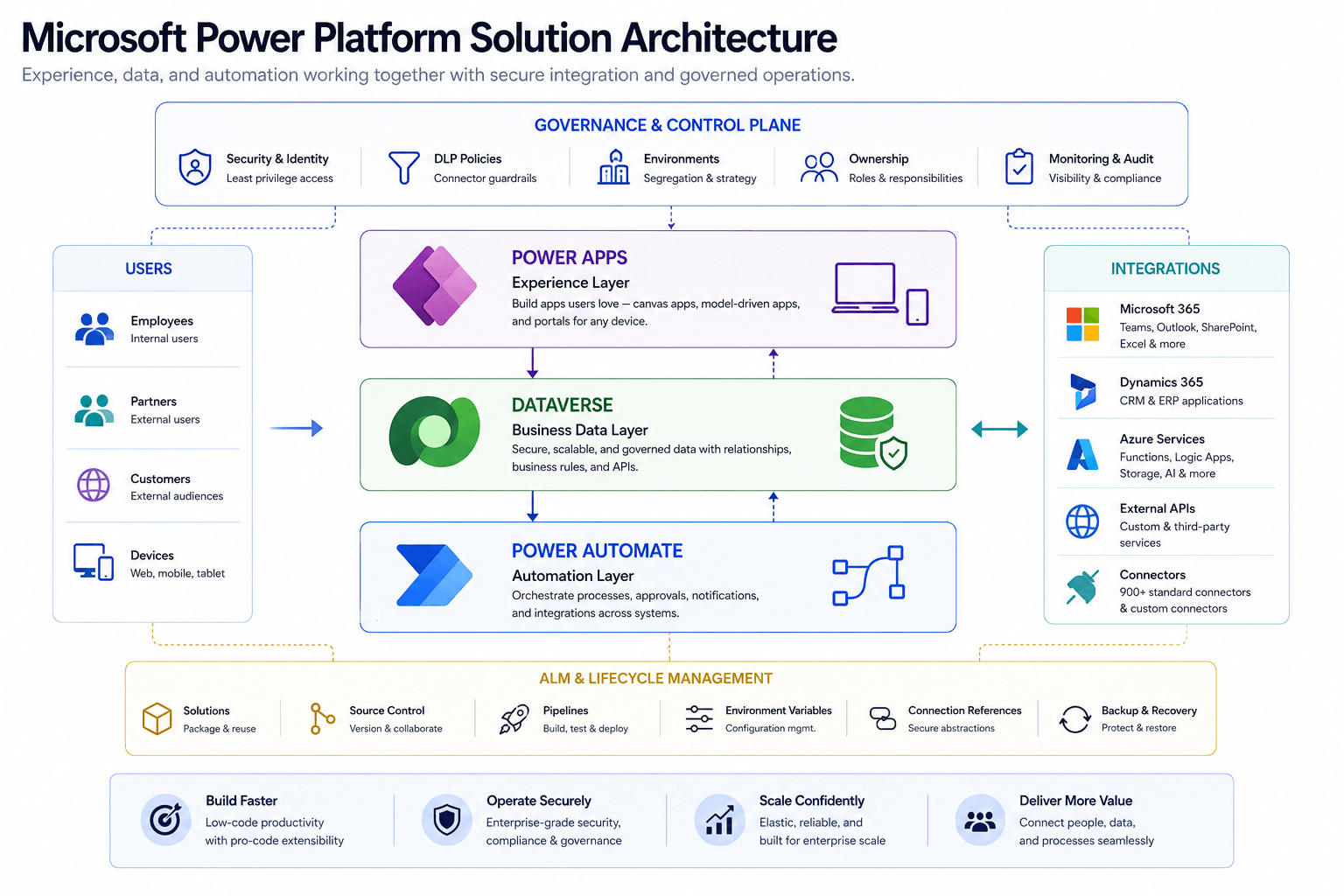

11. The Power Platform Reference Model

Everything now comes together:

flowchart TB

    U["Users / External Audiences"]

    UX["Experience<br/>Power Apps / Power Pages"]
    DATA["Business Data<br/>Dataverse"]
    AUTO["Automation<br/>Power Automate"]
    INT["Integration<br/>Connectors / APIs / Azure"]
    ANA["Analytics<br/>Power BI / Fabric"]

    SEC["Security & Identity"]
    GOV["Governance / DLP"]
    ALM["ALM / Solutions / Pipelines"]
    OPS["Monitoring / Operations"]

    U --> UX
    UX <--> DATA
    DATA <--> AUTO
    AUTO <--> INT
    DATA --> ANA

    SEC -.-> UX
    SEC -.-> DATA
    SEC -.-> AUTO
    GOV -.-> INT
    GOV -.-> DATA
    ALM -.-> UX
    ALM -.-> DATA
    ALM -.-> AUTO
    OPS -.-> UX
    OPS -.-> AUTO
    OPS -.-> DATA

The key is not that every workload needs every component.

It is that each component has a clear responsibility.

12. AI Sits on Top of the Foundation

Microsoft’s 2026 direction increasingly points toward AI-assisted and agentic low-code across Power Apps, Power Automate, Dataverse, Copilot, APIs, and governance.

The architectural sequence remains:

flowchart TD
    A["Identity"]
    B["Data"]
    C["Security"]
    D["Integration"]
    E["Automation"]
    F["ALM"]
    G["Observability"]
    H["Governance"]
    I["AI / Agents"]

    A --> B
    B --> C
    C --> D
    D --> E
    E --> F
    F --> G
    G --> H
    H --> I

AI does not eliminate the platform foundation.

It increases the importance of getting that foundation right.

Conclusion

Power Apps, Dataverse, and Power Automate are not three isolated tools.

They represent three important responsibilities within a broader platform:

Power Apps → experience

Dataverse → business data

Power Automate → orchestration

Connectors and APIs provide integration.

Power BI and Fabric provide analytics.

Azure and custom services provide specialized capabilities.

Environments, security, DLP, solutions, pipelines, monitoring, and ownership provide the control plane.

The most useful architectural question is therefore not:

“Which Power Platform product should I use?”

It is:

“Which responsibility belongs to which platform component?”

Build around the workload, give each component a clear job, and design the boundaries deliberately.

That is how Power Apps, Dataverse, and Power Automate become a platform rather than a collection of disconnected tools.
