Mastering Exchange PowerShell: Parameters, Pipelines, Filtering, and Safe Administration

Exchange administrators usually start by learning individual commands: Get-Mailbox, Set-Mailbox, New-TransportRule, Get-MessageTraceV2, New-MigrationBatch, and so on.

That is useful, but it is not enough.

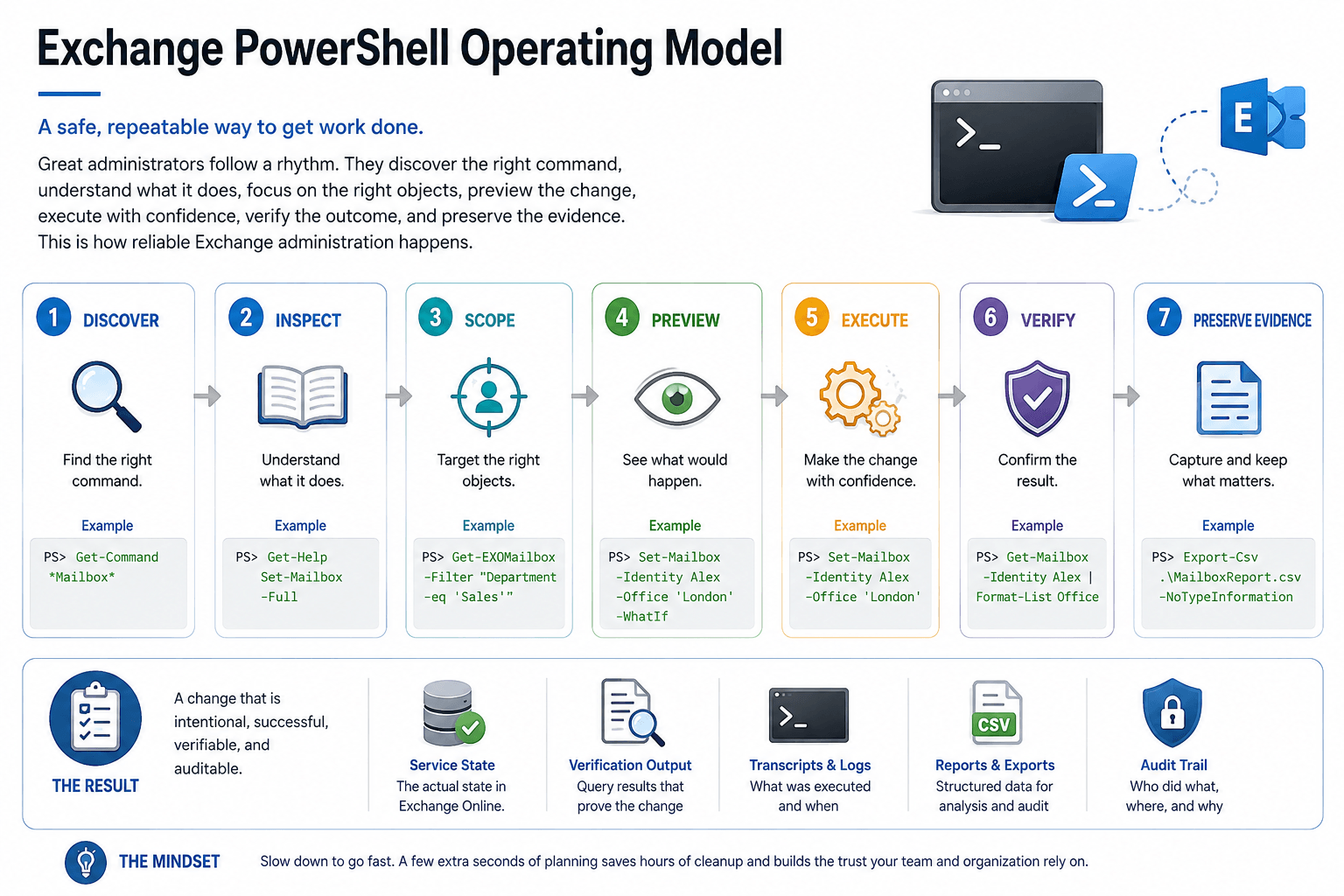

The real skill is understanding how Exchange PowerShell behaves as a management framework. Once you understand how commands, parameters, objects, pipelines, filters, RBAC, and safe execution fit together, unfamiliar cmdlets become much less intimidating.

You stop searching for one-off examples and start reasoning about the task in front of you.

View larger

Image detail

−100%+Reset✕

Why Exchange PowerShell still matters

Graphical admin centers are excellent for small numbers of changes, guided workflows, and visual confirmation. PowerShell becomes essential when the work needs repeatability, speed, evidence, or scale.

A tested script can inventory thousands of mailboxes, find risky forwarding configurations, compare permissions, verify transport configuration, or produce a change record that can be reviewed later.

For Exchange Server, the Exchange Management Shell provides command-line administration for areas such as accounts, connectors, database properties, and distribution groups.

For Exchange Online, the ExchangeOnlineManagement module provides PowerShell administration for mailboxes, recipients, mail flow, and configuration, including REST-backed Exchange Online cmdlets designed for modern administration and bulk retrieval.

A simple rule of thumb is:

• Use the admin center when the task is interactive, simple, or highly visual.
• Use PowerShell when the task is repetitive, large-scale, auditable, or needs exact parameter control.
• Use scripts when the same task will recur, requires validation, or must produce consistent evidence.
• Use Microsoft Graph PowerShell alongside Exchange Online PowerShell for directory-wide Microsoft 365 automation and reporting, but do not assume Graph replaces every Exchange-specific administrative cmdlet.

The modern Exchange PowerShell landscape

Exchange administration is not one PowerShell session. The correct management plane depends on what you are trying to manage.

Throughout this article:

• EXO means Exchange Online PowerShell.
• EMS means Exchange Management Shell.
• S&C means Security & Compliance PowerShell.

Connecting to Exchange Online PowerShell

For interactive administration, the standard pattern is to install or update the ExchangeOnlineManagement module and connect with Connect-ExchangeOnline.

Install-Module ExchangeOnlineManagement -Scope CurrentUser
Import-Module ExchangeOnlineManagement

Connect-ExchangeOnline -UserPrincipalName admin@contoso.com
Get-ConnectionInformation

Disconnect-ExchangeOnline -Confirm:$false

For production operations, avoid connecting repeatedly inside loops. Connect once, run the operation, export results, and disconnect.

A script can keep connection cleanup predictable with try/finally:

Import-Module ExchangeOnlineManagement
Connect-ExchangeOnline -UserPrincipalName admin@contoso.com

try {
    # Run discovery, validation, and changes here.
}
finally {
    Disconnect-ExchangeOnline -Confirm:$false
}

Connecting to Security & Compliance PowerShell

Security and compliance cmdlets are not all imported into the Exchange Online administrative session.

When a task involves Purview compliance, eDiscovery, retention compliance policy, compliance search, or related investigation workflows, connect to the compliance endpoint explicitly.

Import-Module ExchangeOnlineManagement

Connect-IPPSSession -UserPrincipalName complianceadmin@contoso.com

Get-Command *ComplianceSearch*
Get-Command *RetentionCompliance*

Connecting to Exchange Server on-premises

Exchange Server administration is built around the Exchange Management Shell and remote PowerShell.

A basic EMS session can begin with:

Get-ExchangeServer
Get-OrganizationConfig

A remote PowerShell pattern can look like this:

$Session = New-PSSession `
  -ConfigurationName Microsoft.Exchange `
  -ConnectionUri http://ex01.contoso.com/PowerShell/ `
  -Authentication Kerberos

Import-PSSession $Session -DisableNameChecking

Get-Mailbox -ResultSize 10

Remove-PSSession $Session

In a remote session, commands execute in the remote server context. File paths, certificate imports, and exports can therefore behave differently from local PowerShell operations.

For current on-premises deployments, examples should be treated as Exchange Server Subscription Edition-first. Older environments require version and cumulative-update validation before applying examples in production.

Command discovery: how to find the right cmdlet

Command discovery is one of the most valuable Exchange PowerShell skills.

You do not need to memorize every cmdlet. Instead, learn how to search by noun, verb, and management area.

# Discover mailbox-related commands
Get-Command *Mailbox*

# Discover transport-related commands
Get-Command *Transport*

# Discover Get commands for recipient/reporting work
Get-Command -Verb Get -Noun *Recipient*

# Exchange Management Shell helper when available
Get-ExCommand *Mailbox*

PowerShell verbs also provide an early indication of intent and risk:

That distinction matters. Seeing Get-Mailbox and Remove-Mailbox beside each other in command discovery should immediately tell you that they may operate on the same object, but they carry very different consequences.

Help, syntax, and examples

PowerShell help should be your first escalation point before searching the web.

Get-Help Set-Mailbox
Get-Help Set-Mailbox -Detailed
Get-Help Set-Mailbox -Full
Get-Help Set-Mailbox -Examples
Get-Help Set-Mailbox -Parameter Identity
Get-Help Set-Mailbox -Online

(Get-Command Set-Mailbox).ParameterSets |
    Select-Object Name, Parameters

When a cmdlet exposes multiple command forms, you are often looking at different parameter sets. Do not mix parameters from unrelated sets simply because they appear on the same help page.

Parameters: the language of Exchange administration

Parameters tell a cmdlet exactly what to do. The same cmdlet can behave very differently depending on the parameter set and values supplied.

Set-Mailbox -Identity alex@contoso.com -Office 'London'

Set-Mailbox `
    -Identity alex@contoso.com `
    -HiddenFromAddressListsEnabled $true

Set-Mailbox `
    -Identity alex@contoso.com `
    -ForwardingSmtpAddress alerts@contoso.com `
    -DeliverToMailboxAndForward $true

Common parameter types include:

Values such as Unlimited, $true, $false, and specialized Exchange types should not be treated as arbitrary text. Read the parameter help and examples, then test on one object before turning the command into a bulk script.

Parameter sets and conflict errors

Parameter sets are a common source of administrator confusion.

A cmdlet may support several operational modes. Each mode has its own required and optional parameters. When parameters from different modes are combined, PowerShell may be unable to determine which operation you intended.

(Get-Command New-MigrationBatch).ParameterSets |
    Select-Object Name, @{Name='ParameterCount';Expression={$_.Parameters.Count}}

(Get-Command New-MigrationBatch).ParameterSets |
    Where-Object Name -like '*IMAP*' |
    Select-Object -ExpandProperty Parameters |
    Select-Object Name, IsMandatory, ParameterType

The right response to a parameter-set error is not trial and error.

Identify the scenario, find the matching parameter set, remove incompatible parameters, and re-read the examples.

A useful mental model is:

Identity formats and stable targeting

The -Identity parameter looks simple, but it is frequently the difference between a safe script and a risky one.

Exchange objects can often be identified by name, alias, distinguished name, GUID, email address, UPN, or other identity formats.

Avoid display names in automation. They are human-friendly, but they are not guaranteed to be unique and may change.

For repeatable scripts, resolve the object once, capture a stable identifier, and use the resolved identity for the write operation.

$Mailbox = Get-EXOMailbox `
    -Identity alex@contoso.com `
    -Properties ExternalDirectoryObjectId

$Mailbox |
    Select-Object DisplayName, PrimarySmtpAddress, ExternalDirectoryObjectId

Set-Mailbox `
    -Identity $Mailbox.PrimarySmtpAddress `
    -Office 'London' `
    -WhatIf

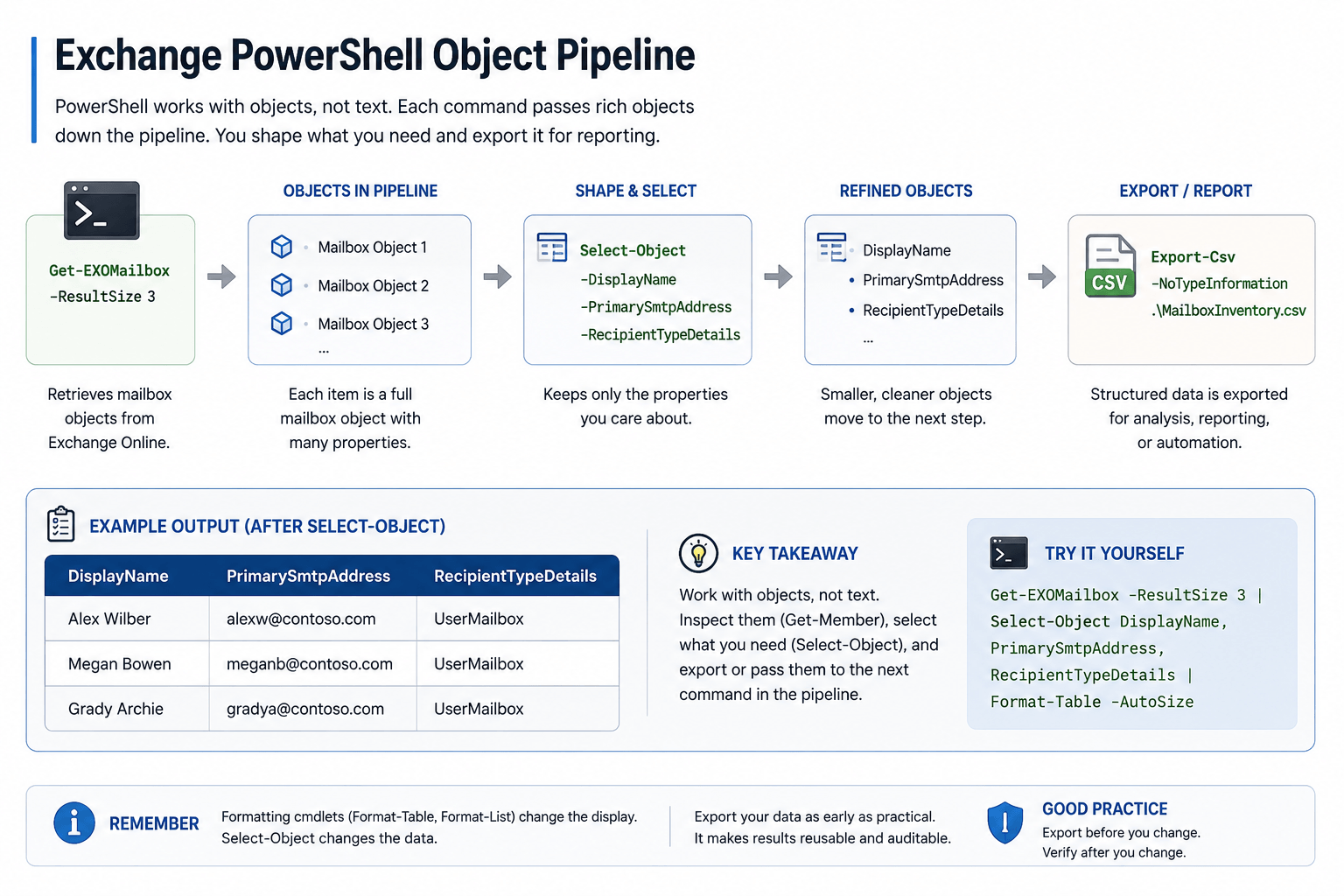

Objects, properties, and the pipeline

Exchange cmdlets return objects.

This is the foundation of reporting, filtering, and automation. If you think the output is text, you will write fragile scripts. If you understand the output as objects with properties, the pipeline becomes predictable.

$m = Get-EXOMailbox -Identity alex@contoso.com

$m | Get-Member
$m.DisplayName
$m.PrimarySmtpAddress

The pipeline passes objects from one command to the next. Some cmdlets accept pipeline input by value, some by property name, and some not at all.

When a pipeline fails, inspect the input type, output type, and parameter-binding behavior instead of assuming the command is unavailable.

# One mailbox to one statistics object
Get-EXOMailbox -Identity alex@contoso.com |
    Get-EXOMailboxStatistics

# Many mailboxes to many statistics objects
Get-EXOMailbox -ResultSize 50 |
    Get-EXOMailboxStatistics

# Select properties for reporting
Get-EXOMailbox -ResultSize 50 |
    Select-Object DisplayName, PrimarySmtpAddress, RecipientTypeDetails |
    Export-Csv .\MailboxInventory.csv -NoTypeInformation

View larger

Image detail

−100%+Reset✕

Filtering: Identity, Filter, RecipientFilter, and Where-Object

Filtering is not just syntax. It is scalability.

A small tenant can hide inefficient habits. A large tenant exposes them quickly.

Traditional Exchange guidance often favors server-side filtering to reduce the data returned to the client. Modern Exchange Online retrieval adds an important nuance: optimized Get-EXO* cmdlets return a minimum property set by default, and additional properties or property sets can be requested.

For example:

# Server/service-side style
Get-Mailbox -Filter "Department -eq 'Sales'" -ResultSize Unlimited |
    Select-Object DisplayName, PrimarySmtpAddress, Department

# EXO optimized retrieval style with explicit properties
Get-EXOMailbox -ResultSize Unlimited -Properties Department,Office |
    Where-Object { $_.Department -eq 'Sales' } |
    Select-Object DisplayName, PrimarySmtpAddress, Department, Office

EXO property sets and minimal retrieval

EXO-prefixed commands such as Get-EXOMailbox are designed for modern Exchange Online retrieval.

The performance mindset is simple:

Retrieve the smallest useful dataset.

# Default property set
Get-EXOMailbox -ResultSize 10

# Request only what the report requires
Get-EXOMailbox `
    -ResultSize Unlimited `
    -Properties Department, Office, CustomAttribute1 |
    Select-Object DisplayName, PrimarySmtpAddress, Department, Office, CustomAttribute1

# Use a property set when it matches the scenario
Get-EXOMailbox `
    -Identity alex@contoso.com `
    -PropertySets Archive

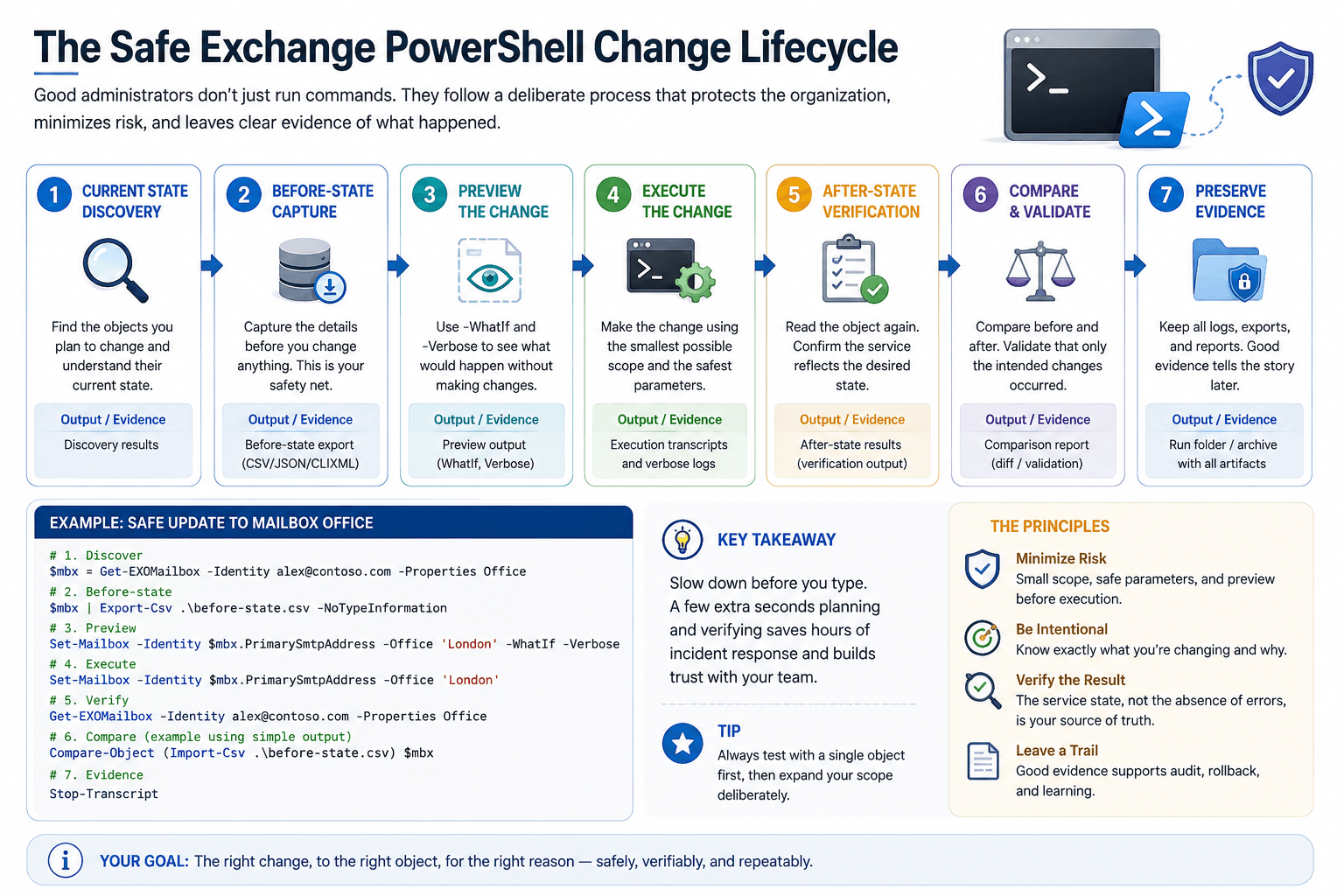

Safe execution: WhatIf, Confirm, Verbose, and ErrorAction

# Preview a supported write operation
Set-Mailbox `
    -Identity alex@contoso.com `
    -Office 'London' `
    -WhatIf

# Ask for detailed execution information
Set-Mailbox `
    -Identity alex@contoso.com `
    -Office 'London' `
    -Verbose

# Make errors catchable in scripts
Set-Mailbox `
    -Identity alex@contoso.com `
    -Office 'London' `
    -ErrorAction Stop

View larger

Image detail

−100%+Reset✕

RBAC: why cmdlets and parameters disappear

A useful way to think about Exchange RBAC is:

• Who receives the access.
• What management roles and role entries expose.
• Where management scopes allow the operation.

If a command works for one administrator but not another, compare roles, role assignments, scopes, and parameter visibility before assuming a module or service issue.

# Which roles include a cmdlet?
Get-ManagementRole -Cmdlet Set-Mailbox

# Which role entries include a specific cmdlet?
Get-ManagementRoleEntry '*\Set-Mailbox'

# Which role entries include a specific parameter?
Get-ManagementRoleEntry '*\*' |
    Where-Object { $_.Parameters -contains 'LitigationHoldEnabled' } |
    Select-Object Role, Name, Parameters

# Which assignments does a role assignee have?
Get-ManagementRoleAssignment -RoleAssignee admin@contoso.com

Interactive command guide

When you are unsure where to begin, start with the task rather than the cmdlet.

Application RBAC, app-only authentication, and automation identities

Unattended Exchange Online automation should not depend on a human typing credentials into a scheduled task.

Certificate-based app-only authentication is an appropriate pattern for supported unattended scenarios, while managed identity can be used where the automation platform and workload support it.

Application authentication does not bypass Exchange RBAC.

A successful authentication only proves that the identity can connect. It does not prove that the identity is authorized to run every Exchange cmdlet or parameter.

# Pattern only. Use your registered app, certificate, and tenant values.
Connect-ExchangeOnline `
    -AppId '00000000-0000-0000-0000-000000000000' `
    -CertificateThumbprint 'THUMBPRINT' `
    -Organization 'contoso.onmicrosoft.com'

# Validate assigned Exchange roles and test authorization where applicable.
Get-ManagementRoleAssignment -RoleAssignee 'AppDisplayName'

Logging, transcripts, and evidence

A good Exchange script should leave evidence:

• what it intended to change,
• what it actually changed,
• what failed,
• and how the result was verified.

A simple evidence pattern can establish a run folder and transcript:

$RunId = Get-Date -Format 'yyyyMMdd-HHmmss'
$LogRoot = Join-Path $PWD "EXO-Run-$RunId"

New-Item -ItemType Directory -Path $LogRoot -Force | Out-Null
Start-Transcript -Path (Join-Path $LogRoot 'transcript.txt')

try {
    Get-EXOMailbox -ResultSize 100 |
        Select-Object DisplayName, PrimarySmtpAddress, RecipientTypeDetails |
        Export-Csv (Join-Path $LogRoot 'mailbox-inventory.csv') -NoTypeInformation
}
finally {
    Stop-Transcript
}

Error handling and idempotence

Idempotent scripts can be run more than once without causing repeated unwanted changes.

The basic idea is straightforward: check the current state, compare it with the desired state, and change only what differs.

$DesiredOffice = 'London'
$Mailbox = Get-EXOMailbox `
    -Identity alex@contoso.com `
    -Properties Office

if ($Mailbox.Office -ne $DesiredOffice) {
    Set-Mailbox `
        -Identity $Mailbox.PrimarySmtpAddress `
        -Office $DesiredOffice `
        -WhatIf
}
else {
    Write-Host "No change required for $($Mailbox.PrimarySmtpAddress)"
}

For bulk operations, capture a result for every object rather than allowing one failure to disappear inside a long-running pipeline.

$Results = foreach ($row in Import-Csv .\mailbox-updates.csv) {
    try {
        $mbx = Get-EXOMailbox `
            -Identity $row.Identity `
            -ErrorAction Stop

        Set-Mailbox `
            -Identity $mbx.PrimarySmtpAddress `
            -Office $row.Office `
            -ErrorAction Stop

        [pscustomobject]@{
            Identity = $row.Identity
            Status   = 'Success'
            Error    = $null
        }
    }
    catch {
        [pscustomobject]@{
            Identity = $row.Identity
            Status   = 'Failed'
            Error    = $_.Exception.Message
        }
    }
}

$Results | Export-Csv .\mailbox-update-results.csv -NoTypeInformation

Reporting patterns: CSV, HTML, and reproducible output

The first rule of reporting is simple:

Export objects, not formatted screen output.

Use Select-Object to choose stable columns, Export-Csv for analysis, and ConvertTo-Html when you intentionally want a human-readable report.

# CSV report
Get-EXOMailbox `
    -ResultSize Unlimited `
    -Properties Department,Office |
    Select-Object DisplayName,PrimarySmtpAddress,RecipientTypeDetails,Department,Office |
    Export-Csv .\exo-mailbox-inventory.csv -NoTypeInformation

An HTML report can be built from the same object-oriented pipeline:

$Report = Get-EXOMailbox -ResultSize 100 |
    Select-Object DisplayName,PrimarySmtpAddress,RecipientTypeDetails |
    ConvertTo-Html -Title 'Mailbox Inventory'

$Report | Out-File .\mailbox-inventory.html -Encoding utf8

Production readiness checklist

Once those questions become routine, Exchange PowerShell becomes much easier to reason about—even when the cmdlet itself is unfamiliar.
