Inside Modern Exchange Online PowerShell: REST, Performance, Objects, and Migration

Modern Exchange Online PowerShell looks familiar.

That is intentional.

You still connect with Connect-ExchangeOnline. You still run familiar Exchange cmdlets. You still receive PowerShell objects and send them through pipelines.

But underneath that familiar surface, the architecture has changed.

Modern Exchange Online PowerShell uses a token-authenticated, REST-backed command model with locally tracked connection metadata. It is not a traditional PowerShell remoting session.

That distinction changes several assumptions that older Exchange scripts quietly relied on.

Get-PSSession is no longer the right way to inspect an Exchange Online connection.

Invoke-Command cannot target an Exchange Online REST connection because there is no remote PowerShell runspace behind it.

The optimized Get-EXO* family deliberately controls which properties are returned.

And performance is not a property of a cmdlet name alone. It depends on the tenant, query, host, module version, PowerShell runtime, connection configuration, and service conditions.

This article looks beneath the familiar cmdlet surface so that existing scripts can be modernized deliberately instead of being rewritten by simple search-and-replace.

View larger

Image detail

−100%+Reset✕

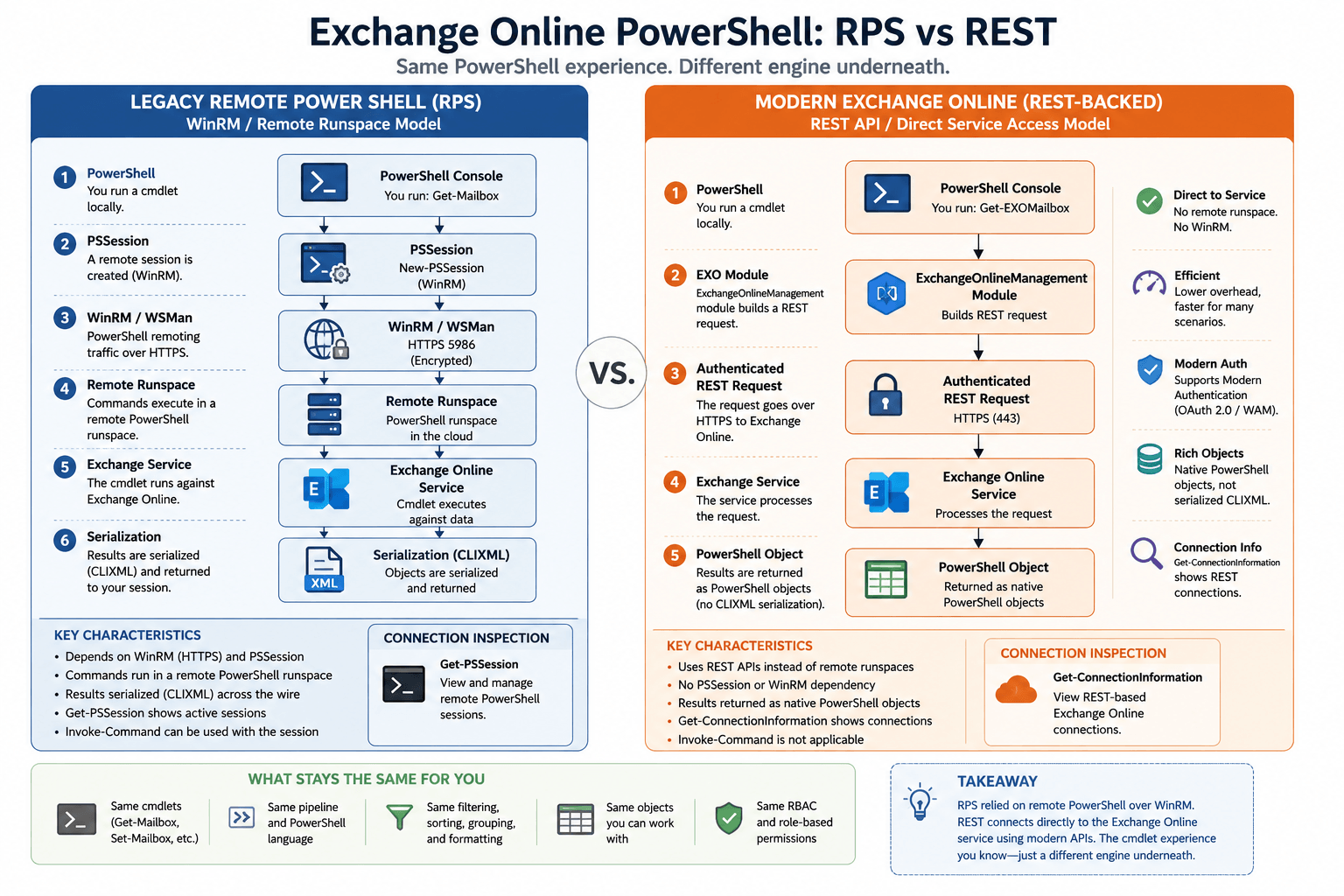

1. From Remote PowerShell to REST

The model that came before

Legacy Exchange Online administration was based on PowerShell remoting.

The client created a PSSession, imported commands, and sent them to a remote runspace. Returned data crossed a serialization boundary, which often produced Deserialized.* objects and removed methods that existed on the original server-side objects.

That model also brought session lifecycle, WinRM configuration, remoting quotas, remote runspace state, and connection recovery into the script’s design.

Get-PSSession

Invoke-Command -Session $Session -ScriptBlock {
    Get-Mailbox -ResultSize 10
}

The modern model

Modern Exchange Online PowerShell replaces that remoting path with REST-backed administrative requests.

A useful mental model is:

PowerShell process → ExchangeOnlineManagement → REST-backed Exchange request → Exchange service → PowerShell object

There is no Exchange Online PSSession representing that connection.

So this:

Get-PSSession

should not be your connection-health test.

Use:

Get-ConnectionInformation

And this:

Invoke-Command

does not become the REST equivalent of remote execution. There is no remote Exchange PowerShell runspace for it to target.

Why the change matters

A script migrated from RPS may still contain assumptions about:

• persistent remote sessions
• remote script blocks
• Get-PSSession
• Invoke-Command
• serialized objects
• old RPS-specific switches
• broad implicit property availability

Modernization therefore requires more than replacing one connection command with another.

2. Understanding Connect-ExchangeOnline

A beginner can reasonably look at:

Connect-ExchangeOnline -UserPrincipalName admin@contoso.com

and think, “I connected to a remote PowerShell session.”

That is no longer the best way to think about it.

The connection process establishes authentication and Exchange context, creates local connection metadata, imports the authorized command surface, and prepares the process to invoke Exchange operations through the modern service path.

Inspect that state with:

Get-ConnectionInformation |
    Select-Object ConnectionId,
                  State,
                  TenantID,
                  UserPrincipalName,
                  TokenStatus,
                  TokenExpiryTime,
                  ModulePrefix,
                  PageSize

The exact information exposed can vary by module version, so applications should inspect the installed object rather than assume that every version produces an identical schema.

Authentication is only the first gate

A successful connection proves that authentication succeeded.

It does not prove that every Exchange operation is authorized.

A later failure can come from:

• Exchange RBAC
• parameter authorization
• tenant routing
• backend execution
• paging
• local object conversion

That distinction becomes especially important in unattended automation.

Modern authentication patterns

Interactive administration might use:

Connect-ExchangeOnline `
    -UserPrincipalName admin@contoso.com `
    -ShowBanner:$false

Supported unattended scenarios can use certificate-based app-only authentication or managed identity:

Connect-ExchangeOnline `
    -AppId $AppId `
    -CertificateThumbprint $Thumbprint `
    -Organization 'contoso.onmicrosoft.com' `
    -ShowBanner:$false

Connect-ExchangeOnline `
    -ManagedIdentity `
    -Organization 'contoso.onmicrosoft.com' `
    -ShowBanner:$false

The important engineering point is that authentication method, Exchange authorization, and workload identity lifecycle are separate concerns.

3. Standard Cmdlets and Get-EXO* Have Different Jobs

Modernization often starts with a tempting replacement:

Get-Mailbox

becomes:

Get-EXOMailbox

That is not enough.

The two command families serve different purposes.

Standard REST-backed cmdlets

These preserve much of the familiar Exchange administrative surface.

They can be the better choice when you need a parameter or operation that the optimized family does not provide, or when the existing workflow depends on broader administrative behavior.

Optimized Get-EXO* cmdlets

The optimized family is focused on retrieval, especially bulk retrieval.

Examples include:

Get-EXOMailbox
Get-EXORecipient
Get-EXOCasMailbox
Get-EXOMailboxPermission
Get-EXORecipientPermission
Get-EXOMailboxStatistics
Get-EXOMailboxFolderStatistics
Get-EXOMailboxFolderPermission

The difference is not cosmetic. The optimized family gives you more deliberate control over properties, paging, and retrieval behavior.

The right question is:

Which supported command gives this workload the behavior and data contract it actually needs?

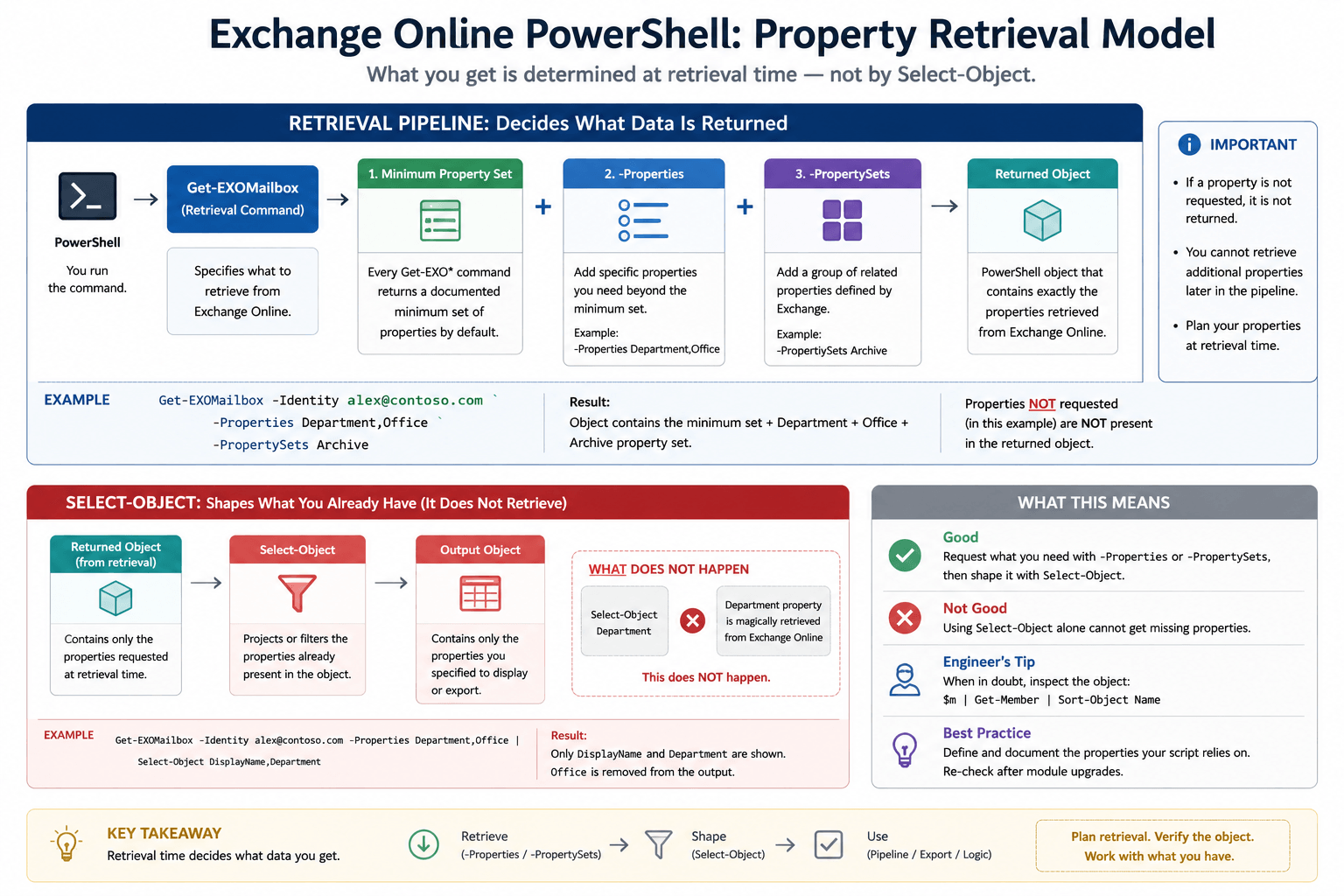

4. The Property Model Is Part of the Query

This is one of the most important differences for anyone moving from older Exchange scripts.

Consider:

$mailbox = Get-EXOMailbox -Identity alex@contoso.com

Later:

$mailbox.Department

The second statement does not cause Exchange to fetch Department.

If you need it, request it:

Get-EXOMailbox `
    -Identity alex@contoso.com `
    -Properties Department,Office

Or use a documented property set:

Get-EXOMailbox `
    -Identity alex@contoso.com `
    -PropertySets Archive

-Properties and -PropertySets influence retrieval. Select-Object only works with properties already present in the returned object.

View larger

Image detail

−100%+Reset✕

$m = Get-EXOMailbox `
    -ResultSize 1 `
    -Properties Department,Office

$hasDepartment = $null -ne $m.PSObject.Properties['Department']
$valueIsNull   = $null -eq $m.Department

Why property breadth matters

A requested property can affect:

• service-side processing
• response size
• network transfer
• object materialization
• PowerShell memory
• serialization or export

A small scalar and a large multivalued property can therefore have very different consequences.

Request the properties the workload needs, use documented property sets when they genuinely fit, and avoid -PropertySets All as a convenience shortcut.

5. Filtering and Paging at Scale

Filtering is where retrieval architecture starts to become a performance issue.

A server-side filter:

Get-EXOMailbox `
    -Filter "Department -eq 'Research'" `
    -Properties Department

allows the service to evaluate the predicate when the cmdlet and property support it.

A client-side filter:

Get-EXOMailbox `
    -ResultSize Unlimited `
    -Properties Department |
    Where-Object Department -eq 'Research'

retrieves a broader population before filtering locally.

That does not mean server-side filtering is universally faster.

Supported operators, property behavior, selectivity, tenant size, module version, and service conditions all matter.

-ResultSize Unlimited

Consider:

Get-EXOMailbox -ResultSize Unlimited

Unlimited removes the result-count limit.

It does not mean:

• one response
• no pagination
• no throttling
• unlimited memory

Exchange Online retrieval is paged.

You can inspect page size:

Get-ConnectionInformation |
    Select-Object ConnectionId,PageSize,State

and configure it when connecting:

Connect-ExchangeOnline `
    -PageSize 1000 `
    -ShowBanner:$false

Larger pages may reduce request overhead while increasing latency or memory pressure. Smaller pages can make progress more incremental while increasing request count.

Treat page size as a tuning variable.

Pipelines are not automatically memory-light

A pipeline can look streaming while later stages retain large portions of the result.

Sort-Object, Group-Object, joins, assignment to variables, exports, and other consumers can buffer data.

A script that behaves perfectly with a few hundred objects can behave very differently when the result set grows by two orders of magnitude.

6. REST Changed the Serialization Boundary, Not the Need for Type Testing

Legacy RPS exposed serialization through Deserialized.* objects.

Modern REST-backed PowerShell removes that specific PowerShell-remoting boundary, but the module still converts service data into PowerShell objects.

Scripts should therefore continue to care about:

• PSTypeNames
• CLR types
• null semantics
• arrays and collections
• multivalued properties
• nested values
• dates
• quotas
• export behavior

A value that looks identical in the console can still behave differently in code.

Inspect the object:

$m = Get-EXOMailbox `
    -ResultSize 1 `
    -Properties Department,Office

$m.PSTypeNames

$m.PSObject.Properties |
    Sort-Object Name |
    Select-Object Name,
                  TypeNameOfValue,
                  IsGettable,
                  IsSettable

Create an application-owned schema

Rather than allowing raw Exchange objects to become your application’s contract:

Get-EXOMailbox `
    -ResultSize Unlimited `
    -Properties Department,Office |
    ForEach-Object {
        [pscustomobject]@{
            ExternalDirectoryObjectId = [string]$_.ExternalDirectoryObjectId
            UserPrincipalName         = [string]$_.UserPrincipalName
            PrimarySmtpAddress        = [string]$_.PrimarySmtpAddress
            Department                = [string]$_.Department
            Office                    = [string]$_.Office
            EmailAddresses            = [string[]]$_.EmailAddresses
        }
    }

Now the application depends on a schema you control.

That creates a useful boundary between Exchange’s representation and your application’s data contract.

7. Errors and Retries Need More Than a catch Block

A fragile script often starts by matching exception text:

catch {
    if ($_.Exception.Message -match 'does not exist') {
        # ...
    }
}

Human-readable messages are useful to people, but they are a poor foundation for application logic.

Capture structured error information instead:

try {
    Set-Mailbox `
        -Identity $Identity `
        -Office $Office `
        -ErrorAction Stop
}
catch {
    [pscustomobject]@{
        Identity      = $Identity
        ExceptionType = $_.Exception.GetType().FullName
        ErrorId       = $_.FullyQualifiedErrorId
        Category      = $_.CategoryInfo.Category
        Target        = $_.TargetObject
        Message       = $_.Exception.Message
    }
}

Modern Exchange Online PowerShell also provides built-in handling for some transient failures.

That is useful, but application retry still needs a policy.

A safe retry design should consider:

• what failed
• whether the operation can safely be repeated
• whether throttling is occurring
• how many attempts are acceptable
• how much delay to introduce
• whether a write may already have succeeded
• how the final state will be verified

Reads are usually easier to retry than writes. A lost response after a successful write is precisely the case where blindly repeating the operation can be unsafe.

8. Multiple Connections Require Explicit Routing

A single connection is easy to understand.

Multiple tenants or identities are not.

Inspect:

Get-ConnectionInformation

and pay attention to:

• TenantID
• ConnectionId
• ModulePrefix
• State
• ConnectionUsedForInbuiltCmdlets

For standard commands, explicit prefixes can help separate tenants.

For optimized Get-EXO* operations, validate the intended connection before the relevant phase.

For independent or high-value workloads, a separate PowerShell process can sometimes be simpler than maintaining complex shared connection state.

The goal is straightforward:

Make it difficult for a valid Exchange command to reach the wrong tenant.

9. -CommandName and Session Memory

A large automation job may need only a small portion of the Exchange command surface.

You can limit imported commands:

$needed = @(
    'Get-Mailbox',
    'Set-Mailbox',
    'Get-Recipient'
)

Connect-ExchangeOnline `
    -CommandName $needed `
    -SkipLoadingFormatData `
    -ShowBanner:$false

This can reduce command-import and memory overhead.

But command discovery should happen before narrowing the command set. Dynamic command construction can make static analysis incomplete.

Likewise, disconnecting does not guarantee that every allocated byte immediately disappears from the process.

For serious memory benchmarking, process isolation gives much cleaner results.

10. Runtime and Module Version Are Part of the Script

The Exchange cmdlet is only one component of the execution environment.

Compatibility can depend on:

• ExchangeOnlineManagement
• Windows PowerShell vs. PowerShell 7
• .NET
• operating system
• authentication flow

Capture that environment:

$module = Get-Module ExchangeOnlineManagement -ListAvailable |
    Sort-Object Version -Descending |
    Select-Object -First 1

[pscustomobject]@{
    PowerShell = $PSVersionTable.PSVersion.ToString()
    Edition    = $PSVersionTable.PSEdition
    OS         = $PSVersionTable.OS
    EXOModule  = $module.Version.ToString()
}

For production automation, use controlled module versions, upgrade canaries, regression tests, and a rollback path rather than blindly accepting every module update.

11. Measure Performance Like an Engineer

Performance discussions often become unreliable because the experiment is too small.

For example:

Measure-Command {
    Get-EXOMailbox -ResultSize Unlimited
}

and:

Measure-Command {
    Get-EXOMailbox `
        -ResultSize Unlimited `
        -Properties Department,Office
}

Running each once does not establish a general rule.

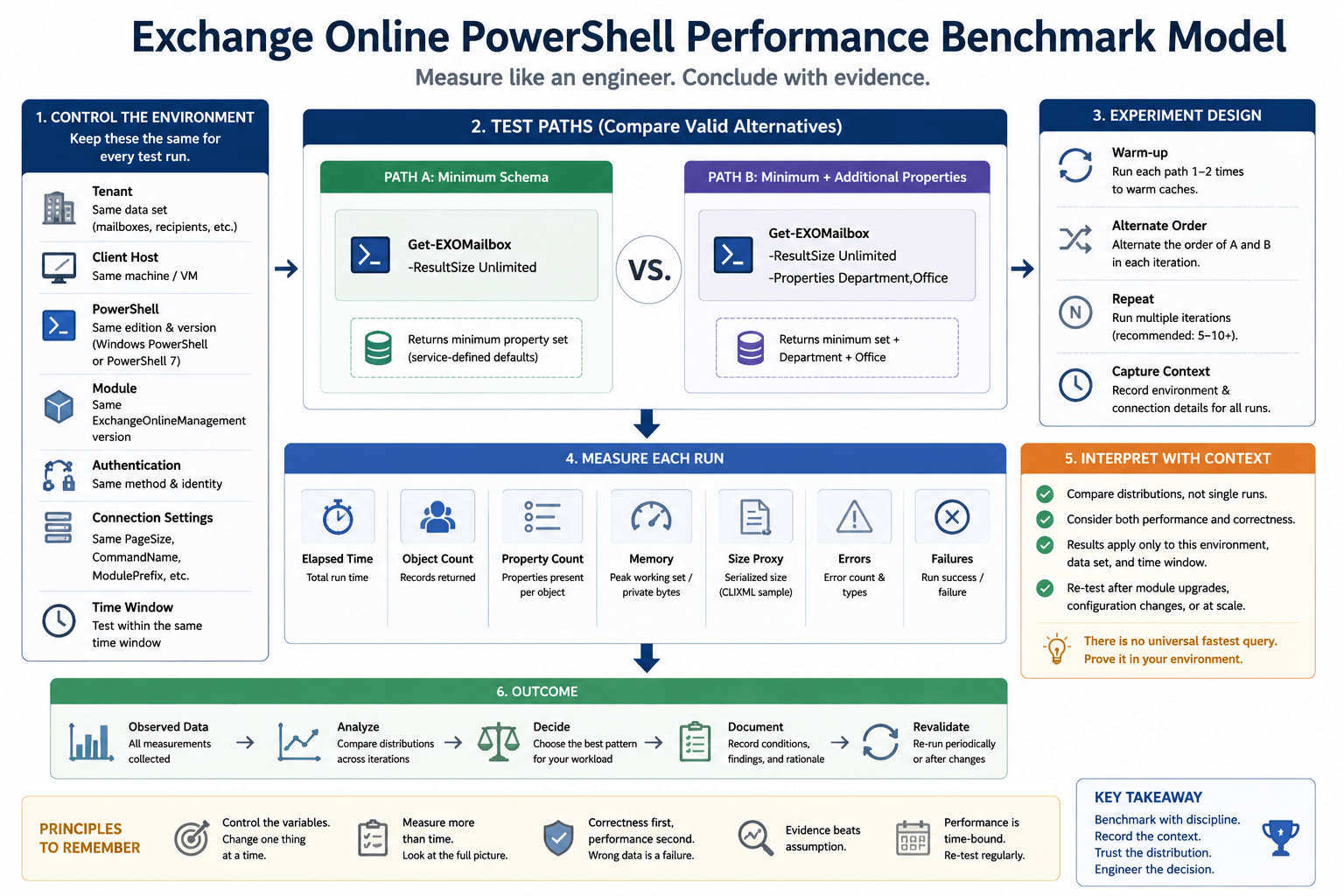

The benchmark model should instead repeat the tests, alternate execution order, record the environment, and check correctness alongside timing.

Useful measurements include:

• elapsed-time distribution
• object count
• property count
• memory
• serialized sample-size proxy
• errors
• failures
• module and PowerShell versions

View larger

Image detail

−100%+Reset✕

Reproduce the benchmark

Download the benchmark harness

A small benchmark can begin with:

$tests = [ordered]@{
    Minimum = {
        Get-EXOMailbox -ResultSize Unlimited
    }

    DepartmentOffice = {
        Get-EXOMailbox `
            -ResultSize Unlimited `
            -Properties Department,Office
    }
}

Then repeat each pattern, alternate the order, and retain the results.

Correctness must be measured alongside speed.

A faster query that returns the wrong population, misses properties, creates duplicates, or produces incompatible types is not an optimization.

12. Migrating RPS Scripts

This is where the earlier sections come together.

A migration should begin with an inventory of old assumptions.

Search for:

New-PSSession
Import-PSSession
Connect-EXOPSSession
Get-PSSession
Remove-PSSession
Invoke-Command
-UseRPSSession
WSMan configuration

Then inspect the script itself.

Look for:

• cmdlets
• parameter sets
• filters
• implicit defaults
• output properties
• object methods
• formatting
• exports
• error-message parsing
• authentication
• parallelism
• retry behavior
• multitenant routing

The point is to discover what the old architecture allowed the script to assume.

Put the migration plan into practice

Download the RPS → REST migration checklist

Download the modernization worksheet

Replace the connection model

A modern connection helper can validate its resulting connection:

function Connect-WorkloadExchange {
    [CmdletBinding()]
    param(
        [Parameter(Mandatory)]
        [string]$Organization,

        [Parameter(Mandatory)]
        [string[]]$CommandName
    )

    Connect-ExchangeOnline `
        -Organization $Organization `
        -ManagedIdentity `
        -CommandName $CommandName `
        -ShowBanner:$false `
        -ErrorAction Stop

    $connection = Get-ConnectionInformation |
        Where-Object ConnectionUsedForInbuiltCmdlets |
        Select-Object -First 1

    if (-not $connection -or
        $connection.State -notmatch 'Connected') {
        throw 'Exchange Online connection validation failed.'
    }

    $connection
}

The exact State values should be validated against the installed module rather than treated as a permanent undocumented contract.

Replace remote script blocks

A legacy pattern like:

Invoke-Command -Session $Session -ScriptBlock {
    Get-Mailbox ...
    Get-Recipient ...
}

should be redesigned as local orchestration.

That means revisiting batching, request boundaries, N+1 queries, checkpointing, retries, and write verification.

Normalize the output

Do not let the Exchange module’s raw object shape become the long-term contract of your application.

Define the fields you actually need.

Request them explicitly.

Normalize them.

Test them.

Then let the rest of the application depend on that stable representation.

13. Migration Is Not Complete Until It Passes Validation

A migrated script should satisfy more than:

“The commands ran.”

That is much closer to what “migration complete” should mean.

14. The Patterns Worth Keeping

By now, the modern Exchange Online PowerShell model can be reduced to a handful of habits.

Inspect the connection instead of guessing at it.

Choose the command family deliberately.

Request the properties the workload actually consumes.

Treat object types as part of the application contract.

Filter with both correctness and performance in mind.

Do not confuse Unlimited with unbounded execution.

Treat retries as an engineering decision.

Make tenant routing explicit.

Control runtime and module dependencies.

Measure performance rather than repeating folklore.

Migrate old assumptions, not just old command names.

15. Troubleshooting the Modern Model

When a connection fails, start with the environment:

$PSVersionTable

Get-Module ExchangeOnlineManagement -ListAvailable |
    Sort-Object Version -Descending |
    Select-Object -First 1 Name,Version

Get-ConnectionInformation

Then separate the failure into the appropriate layer.

Authentication problem

Investigate the chosen authentication flow, system time, browser/WAM prerequisites, certificate access, managed-identity availability, proxy behavior, TLS inspection, or cloud endpoint requirements.

Wrong tenant or wrong connection

Compare:

• TenantID
• identity
• ModulePrefix
• ConnectionId
• ConnectionUsedForInbuiltCmdlets

Do not infer REST routing from Get-PSSession.

Slow retrieval

Record:

• object count
• requested properties
• filter type
• page size
• sorting/grouping
• export behavior
• memory
• retry/throttling
• number of remote calls

Then benchmark again under controlled conditions.

Missing or changed properties

Inspect:

$m.PSObject.Properties
$m.PSTypeNames

Determine whether the property is:

• not retrieved
• null
• empty
• a collection
• a different runtime type
• different for the recipient subtype
• different in the newer module version

That is much more useful than comparing formatted console output.

Conclusion

Modern Exchange Online PowerShell still looks like PowerShell.

That familiar surface is useful, but it can hide a very different execution model underneath.

A REST-backed connection is not a PSSession.

Invoke-Command is not its replacement.

Get-ConnectionInformation is the connection-state view.

Get-EXO* is not merely a renamed Get-Mailbox.

Select-Object cannot retrieve a property that was never returned.

-ResultSize Unlimited does not eliminate paging, throttling, or memory constraints.

A successful command does not automatically prove a compatible result.

A retry does not automatically make a write safe.

And one benchmark run does not establish a universal performance truth.

The practical discipline is straightforward:

Understand the connection, choose the right retrieval model, request the data you need, test the object contract, measure the workload, and migrate old assumptions—not just old command names.

That is what turns the modern Exchange Online PowerShell model from something merely familiar into something you can engineer with confidence.

Downloadable Resources

• Download the benchmark harness
• Download the RPS → REST migration checklist
• Download the modernization worksheet
• Download the modernization glossary
